Garage door repair project
Off-Track Garage Door Repair on 181st Ave in Waddell
A homeowner in Waddell opened the garage door, but it did not rise completely. While backing out, the vehicle contacted the partially opened door, moving the garage door out of alignment. Eric replaced the two affected rollers and damaged cable, restored cable tension, and realigned the door so it opened and closed normally again.
What Happened to the Garage Door
The garage door had not opened all the way before the homeowner began backing out. The vehicle contacted the partially open door and knocked the door out of alignment.
At least two rollers on the left side came out of position, and the garage door cable was damaged and lost tension. That uneven garage door cable tension caused the bottom of the door to sit at an angle instead of closing evenly against the floor.
What Eric Found During the Inspection
-
1
Door Tilted Out of Alignment
The garage door was visibly tilted, and one side of the door sat higher than the other.
-
2

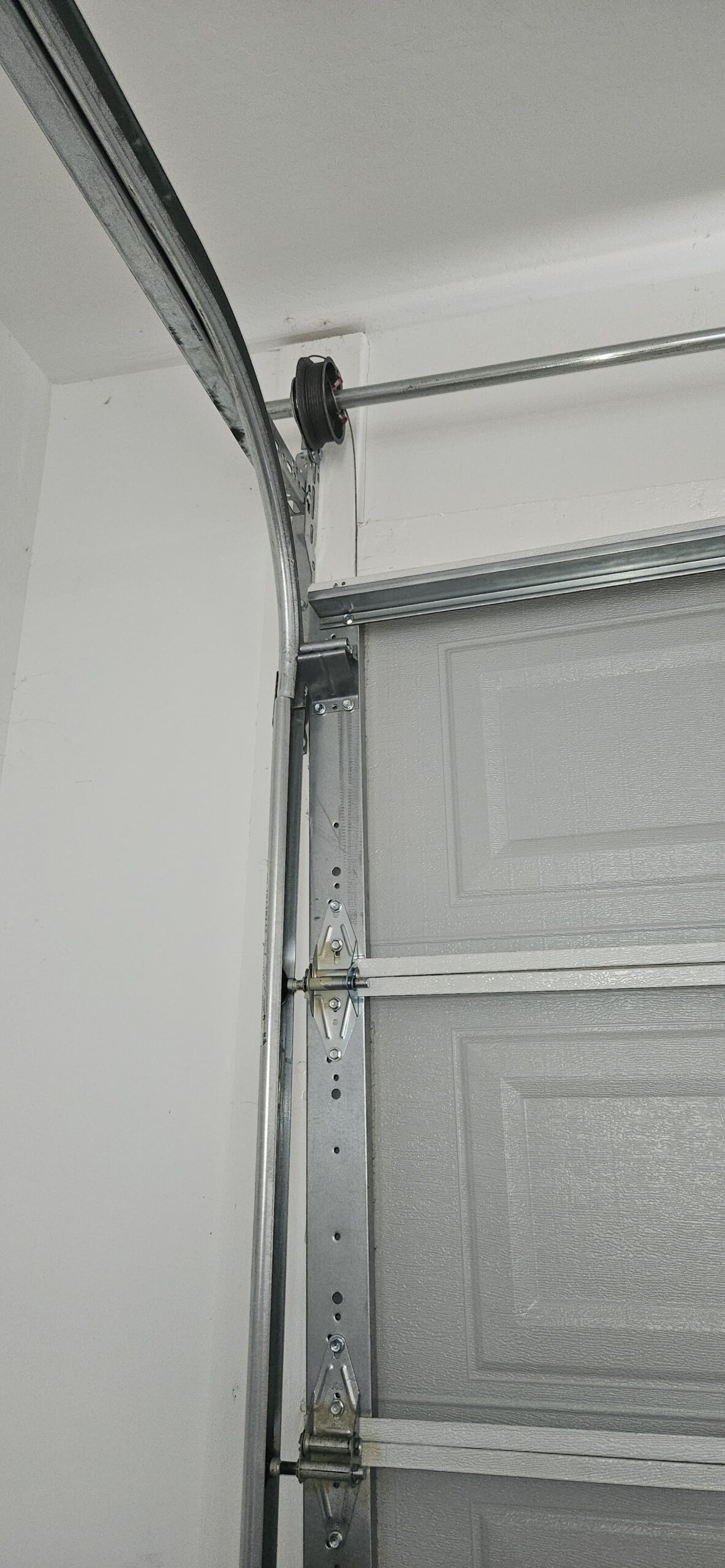

Left-Side Rollers Out of Position
At least two rollers on the left side had come out of their correct position.
-
3
Damaged Cable With Lost Tension
The damaged cable had lost tension, which kept the garage door from sitting level.
-
4

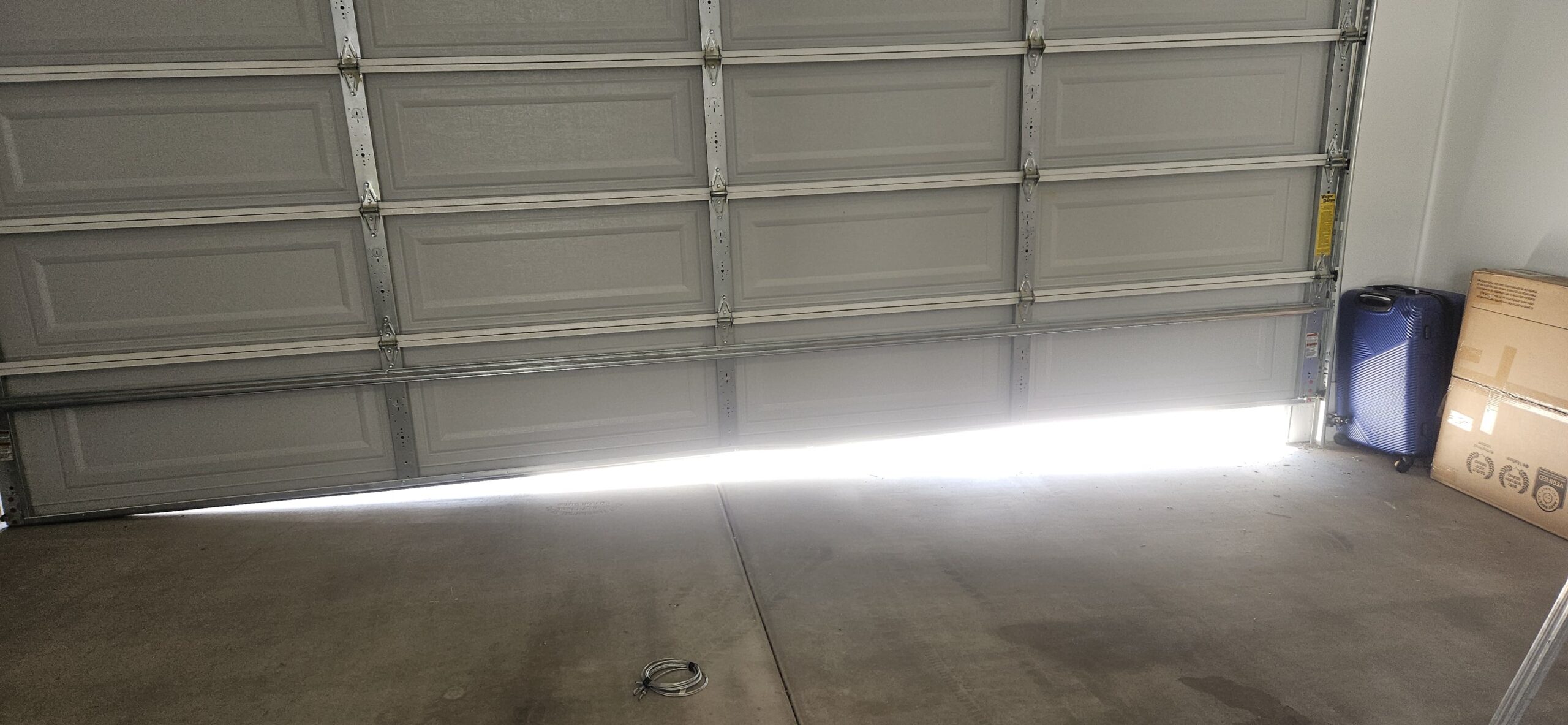

Large Gap Under the Door
Daylight was visible beneath the bottom of the door because the garage door was not closing evenly.
Off-Track Garage Door Repair Completed on 181st Ave
Eric secured the misaligned garage door, replaced the damaged parts, restored cable tension, and tested the door through complete opening and closing cycles.
-
01
Secured the Misaligned Garage Door
The door was stabilized before the affected rollers and cable were repaired.
-
02
Replaced the Two Damaged Rollers
Two damaged rollers on the left side were replaced.
-
03
Replaced the Damaged Garage Door Cable
The damaged cable was removed and replaced.
-
04
Restored Proper Cable Tension
Eric adjusted the cable tension so the door could sit evenly again.
-
05

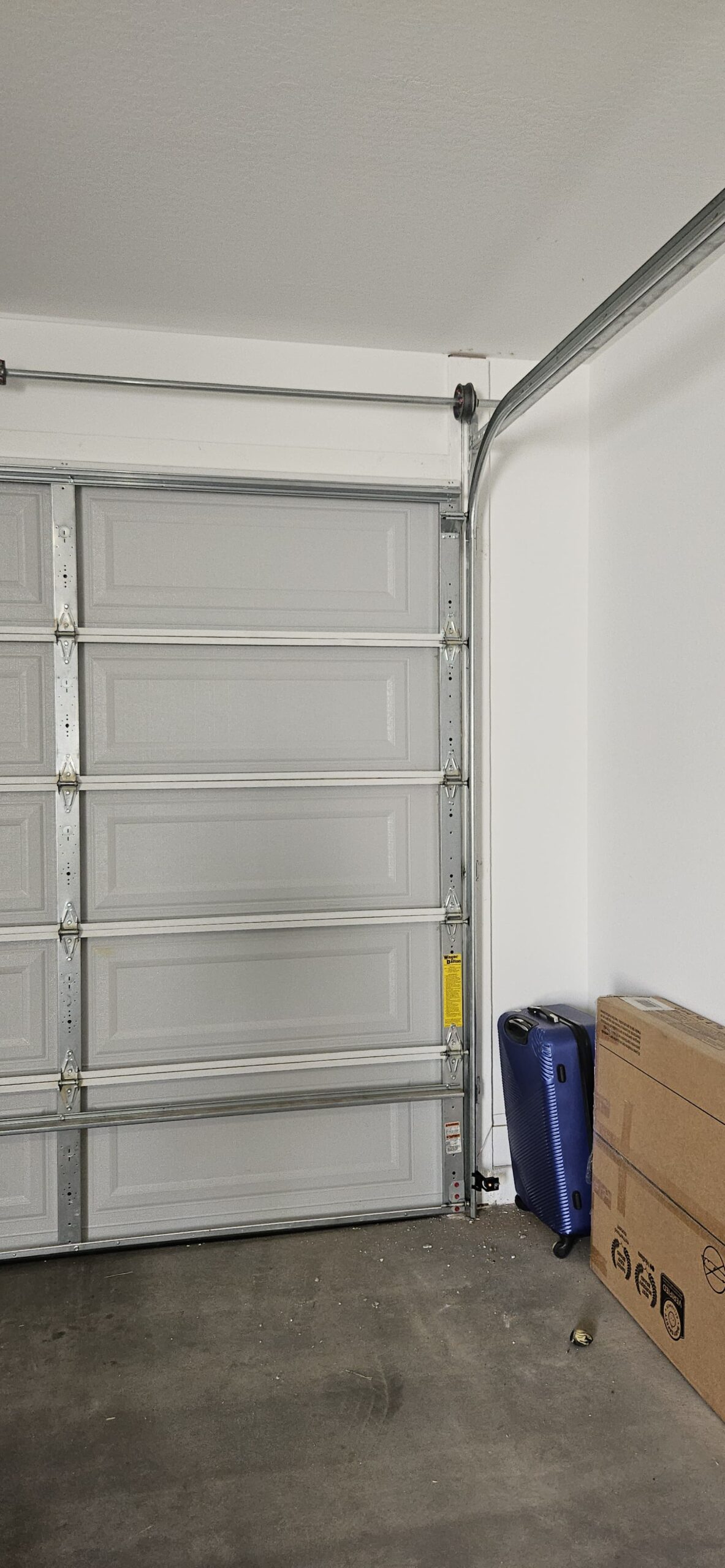

Returned the Rollers to Their Track Position
The rollers were placed back into the correct track position for normal movement.
-
06

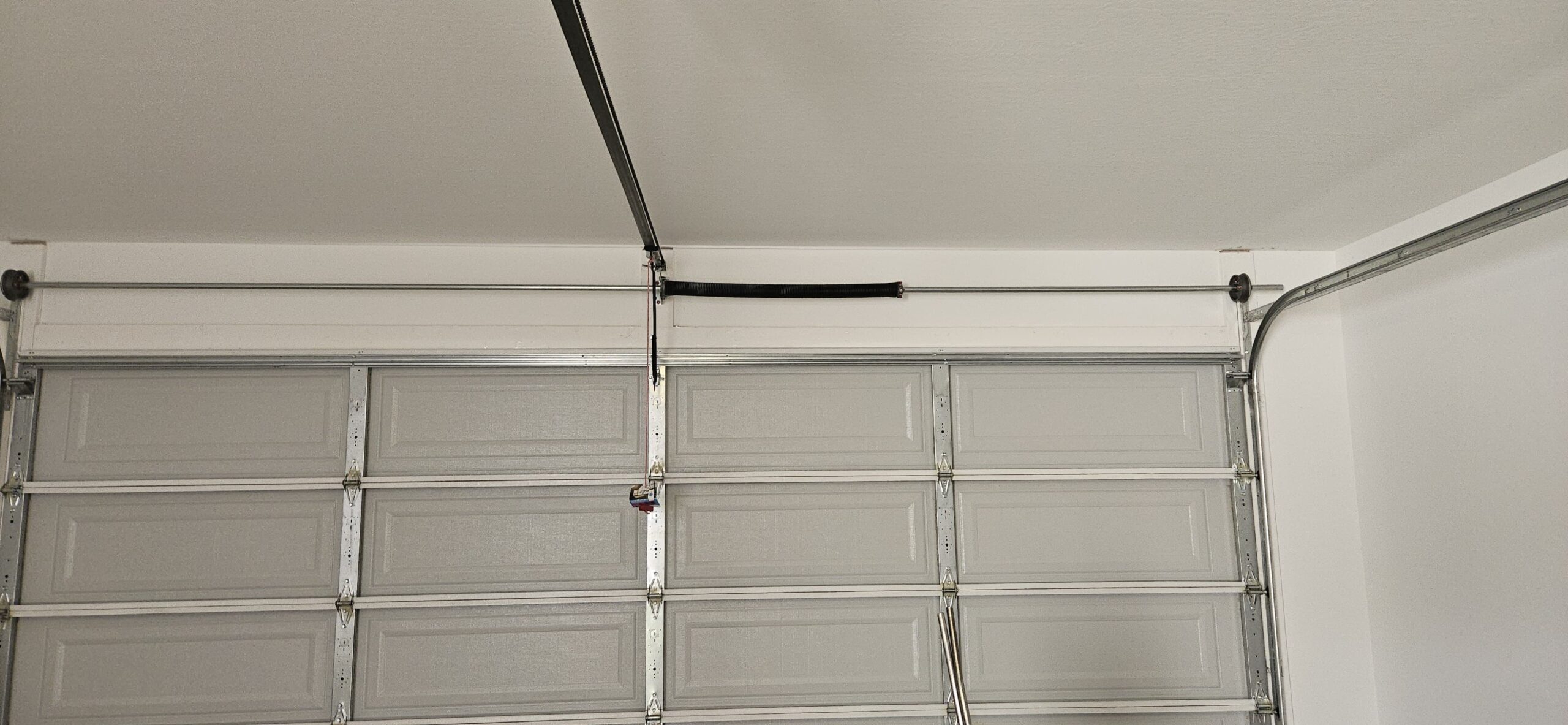

Realigned and Leveled the Door
The garage door was realigned and checked so the bottom made even contact with the floor.
-
07
Tested Complete Opening and Closing Operation
The door was tested through full opening and closing cycles to confirm normal operation after the repair.
Before and After Project Photos
A closer look at the tilted door, uneven bottom gap, off-track roller, aligned rollers, and level door after this Waddell repair.
The Result

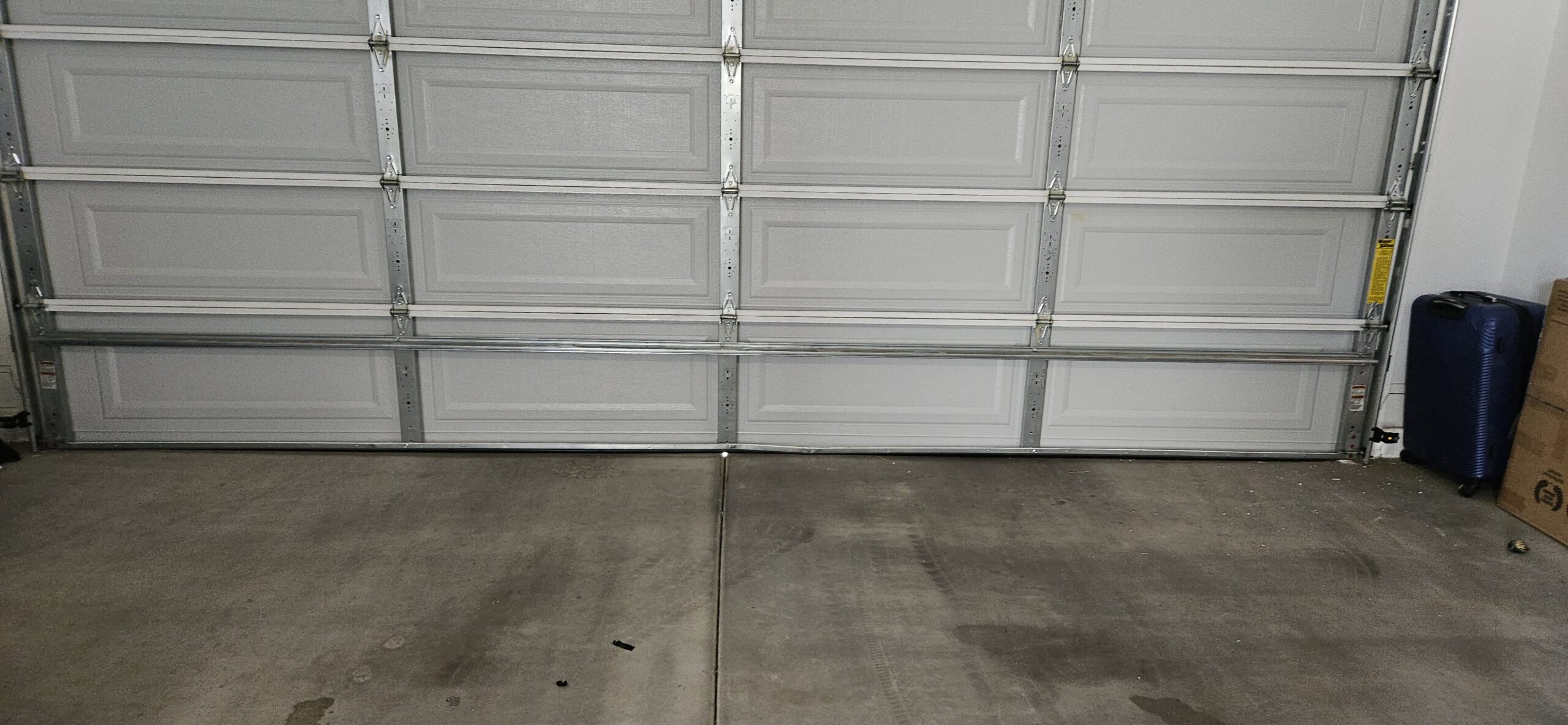

After the garage door roller replacement and garage door cable replacement, the rollers were properly positioned, cable tension was restored, and the door was level again. The bottom of the garage door sat evenly against the floor, and the residential sectional Wayne Dalton door opened and closed normally after the repair.
Door aligned and normal operation confirmedProject area
181st Ave Garage Door Repair in Waddell
This off-track garage door repair was completed in the 181st Ave area of Waddell, AZ 85355.
